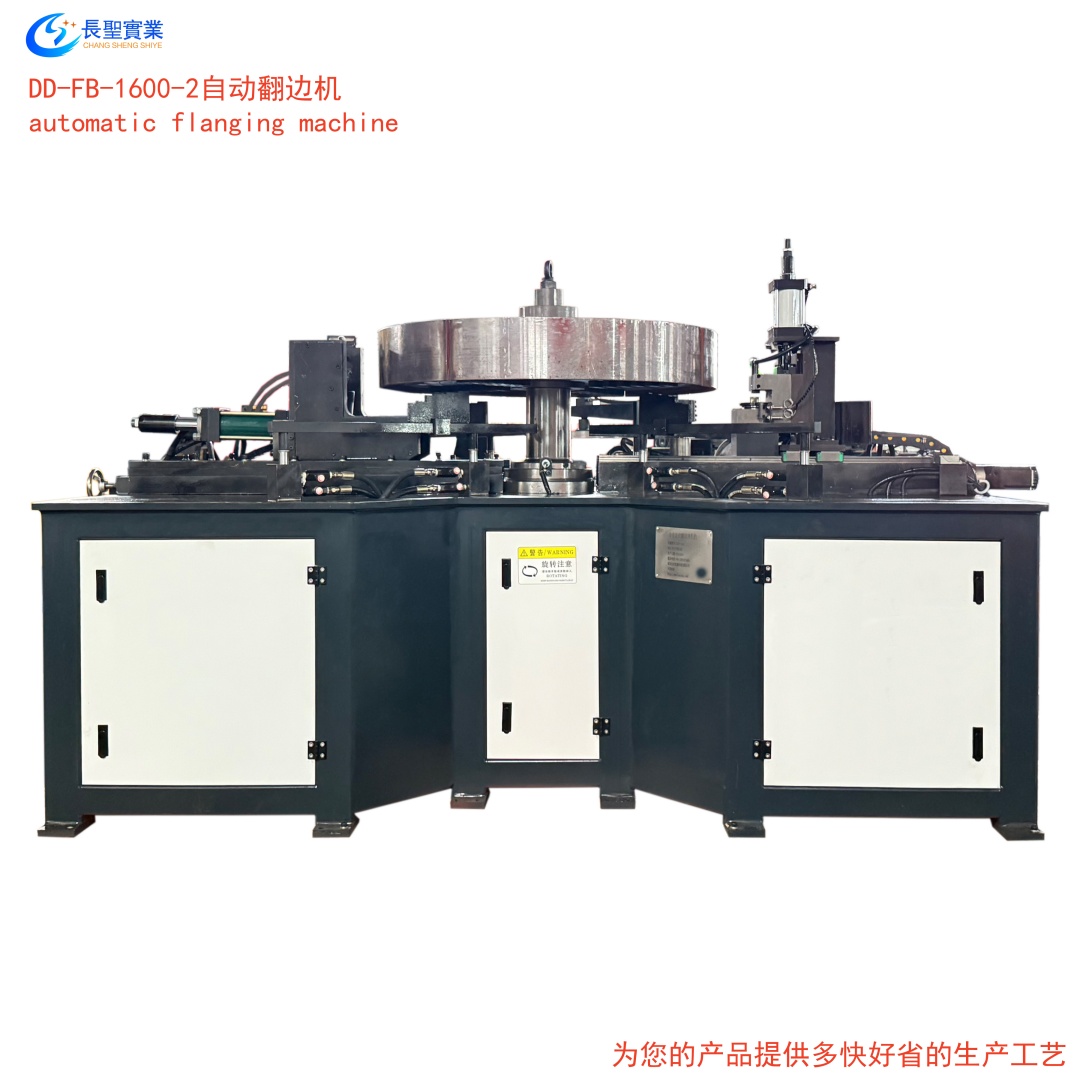

Equipment function: flanging, edge drawing, punching, folding (thickness of folding and edge drawing is within 4mm for carbon steel)

Equipment functions: flanging, pulling, punching, folding (the thickness of the folding is less than 4mm for carbon steel) Equipment features: 1. The main axis is equipped with a high-power servo motor and a star reducer to improve the punching efficiency and the accuracy of the indexing. 2. This type of machine with an annual output of about 100 units can provide strong technical support. 3. The support device adopts a cylinder support, which has strong support force and small radial swing when the workpiece rotates. 4. The flange width adjustment adopts a step-type module, the flanging width is more stable, and the adjustment type saves time. 5. The corner star reducer is used to make the machine lower and more convenient to operate.

1. Machine layout: vertical 2. Processing range: fan duct right angle flange flanging, indexing drilling, rib pressing. 3. Mold type: hydraulic internal expansion mode. 4. Operation interface: touch screen 5. Control mode: plc or CNC system 6. Working environment: working environment temperature 0-40

Equipment features: 1. Punching configuration saving function, only need to call out the program when changing workpieces (greatly reduces the difficulty of debugging, saves debugging time, and enhances the consistency of production products). 2. The spindle is equipped with a high-power servo motor and a star reducer to improve the punching efficiency and the accuracy of indexing. 3. The flange width adjustment adopts a step-type module, the flange width is more stable, and the adjustment type saves time. 4. The corner star reducer is used to make the machine lower and more convenient to operate.

Flanging material thickness: 0.7-3MM (iron plate) Flanging diameter: 250-800MM Flanging cylinder height: 60-2000

Flanging material thickness: 2-12MM (carbon steel) Flanging diameter: 70-350MM (inner diameter) Flanging cylinder height: 40-400 (finished product)

Equipment features: 1. Punching configuration saving function, only need to call out the program when changing workpieces (greatly reduces the difficulty of debugging, saves debugging time, and enhances the consistency of production products). 2. The spindle is equipped with a high-power servo motor and a star reducer to improve the punching efficiency and the accuracy of indexing. 3. The flange width adjustment adopts a step-type module, the flange width is more stable, and the adjustment type saves time. 4. The corner star reducer is used to make the machine lower and more convenient to operate.

1. Equipment functions: flanging, secondary edge drawing, punching 2. Each station is driven by a servo motor for advance and retreat; 3. The molding configuration save function only requires calling out the program when changing the workpiece (greatly reducing the difficulty of debugging, saving debugging time, and enhancing the consistency of production products). 4. The spindle is equipped with a high-power servo motor and a planetary reducer to improve the punching efficiency and the accuracy of indexing. 5. This type of machine with an annual output of about 100 units can provide strong technical support. 6. The support device adopts a cylinder support, which has strong support force and small radial swing when the workpiece rotates. 7. The flange width adjustment adopts a step-type module, the flanging width is more stable, and the adjustment type saves time. 8. The corner type planetary reducer is adopted to make the machine lower and more convenient to operate.

Features of fan flanging machine: 1. Punching configuration saving function, only need to call out the program when changing workpiece (greatly reduces debugging difficulty, saves debugging time, and enhances the consistency of production products). 2. The spindle is equipped with high-power servo motor and star reducer to improve punching efficiency and indexing accuracy. 3. The flange width adjustment adopts step-type module, the flanging width is more stable, and the adjustment type saves time. 4. The corner star reducer is adopted to make the machine lower and more convenient to operate.

This equipment is specially developed for pipe flange flanging operations and is designed to meet the processing needs of small diameter and thick wall long pipes. Its significant advantage lies in its excellent flanging efficiency and easy operation, providing an efficient and convenient solution for related operations.

1. The forming configuration saving function only requires calling out the program when changing the workpiece (greatly reduces the difficulty of debugging, saves debugging time, and enhances the consistency of production products). 2. The spindle is equipped with a high-power servo motor and a star reducer to improve the punching efficiency and the accuracy of indexing. 3. The support device adopts a cylinder support, which has strong support force and small radial swing when the workpiece rotates. 4. The flange width adjustment adopts a step-type module, the flanging width is more stable, and the adjustment type saves time. 5. The corner star reducer is adopted to make the machine lower and more convenient to operate.

Features of flange flanging machine: 1. The pre-bending function is added during flanging to improve the yield rate when rolling stainless steel. 2. The main axis is equipped with a high-power servo motor and a star reducer to improve the punching efficiency and the accuracy of indexing. 3. The support device adopts a cylinder support, which has strong support force and small radial swing when the workpiece rotates. 4. The flange width adjustment adopts a step-type module, the flanging width is more stable, and the adjustment type saves time. 5. The corner star reducer is used to make the machine lower and more convenient to operate.
